VCXOs

Voltage Controlled Crystal Oscillator (English: Voltage Controlled Crystal Oscillator), often identified as VCXO, referred to as voltage controlled crystal. This product is already a complete active oscillator. After the voltage is applied, the output will output HCMOS/TTL/SINE WAVE/LVPECL/LVDS/ECL/MCL/HCSL and other level signals according to the set parameters. The output frequency signal will follow. A change in the voltage at the voltage control terminal produces a variation over a range of nominal frequencies. The product is mainly composed of quartz wafer, pedestal, outer casing, conductive adhesive, silver/gold, RC, IC, varactor diode and other materials. According to the lead condition, it can be divided into two types: in-line (with lead) and surface mount (without lead).
All of 6 Results
Pic. Series Product introduction Datasheet

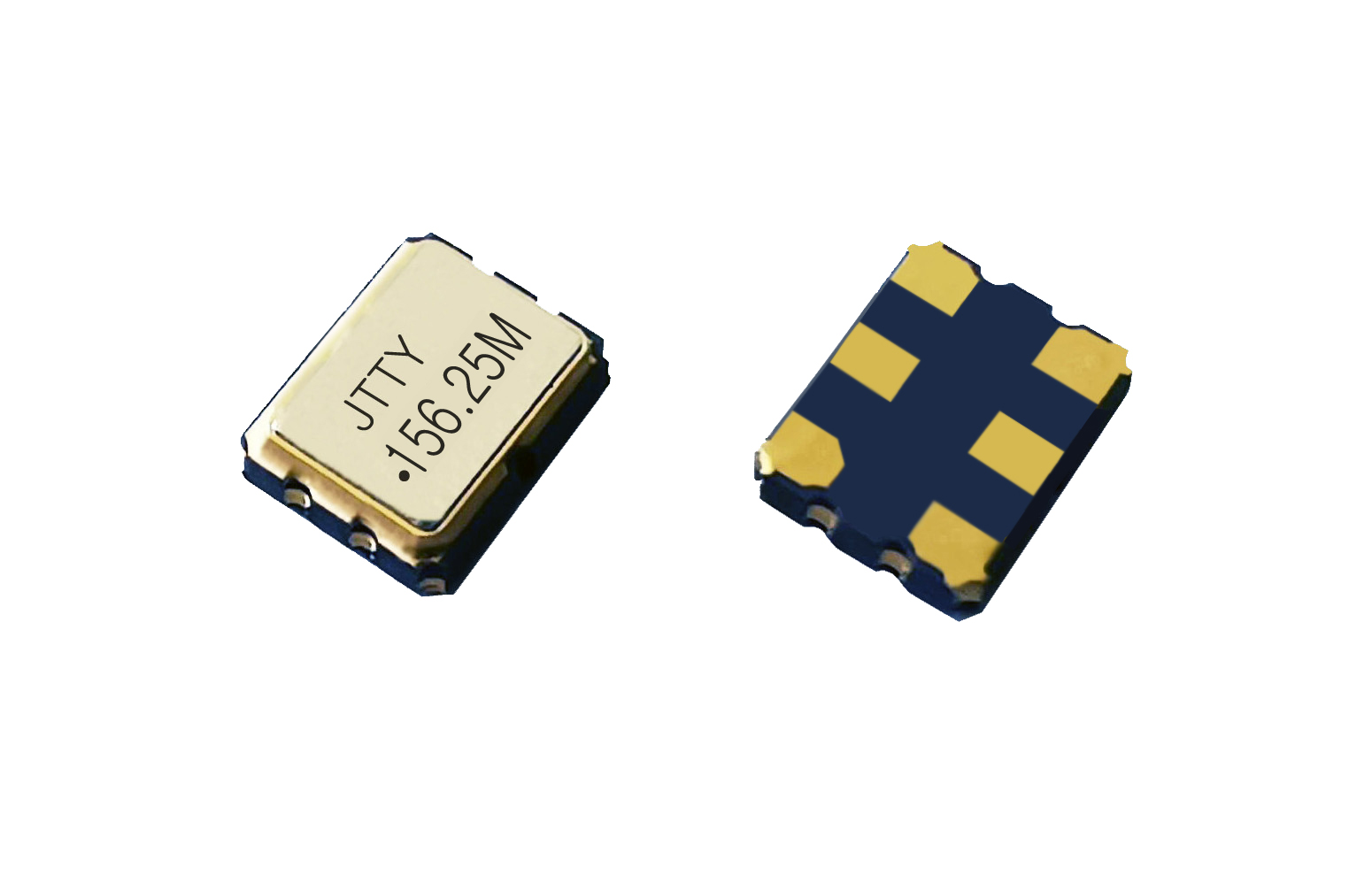

VC32 Package Size:3.2*2.5*1.0;Frequency:1MHz~220MHz;Supply Voltage:1.8V~5V;Frequency stability:±5ppm~±50ppm;Output Leve:CMOS/TTL;working temperature:-55℃~125℃;

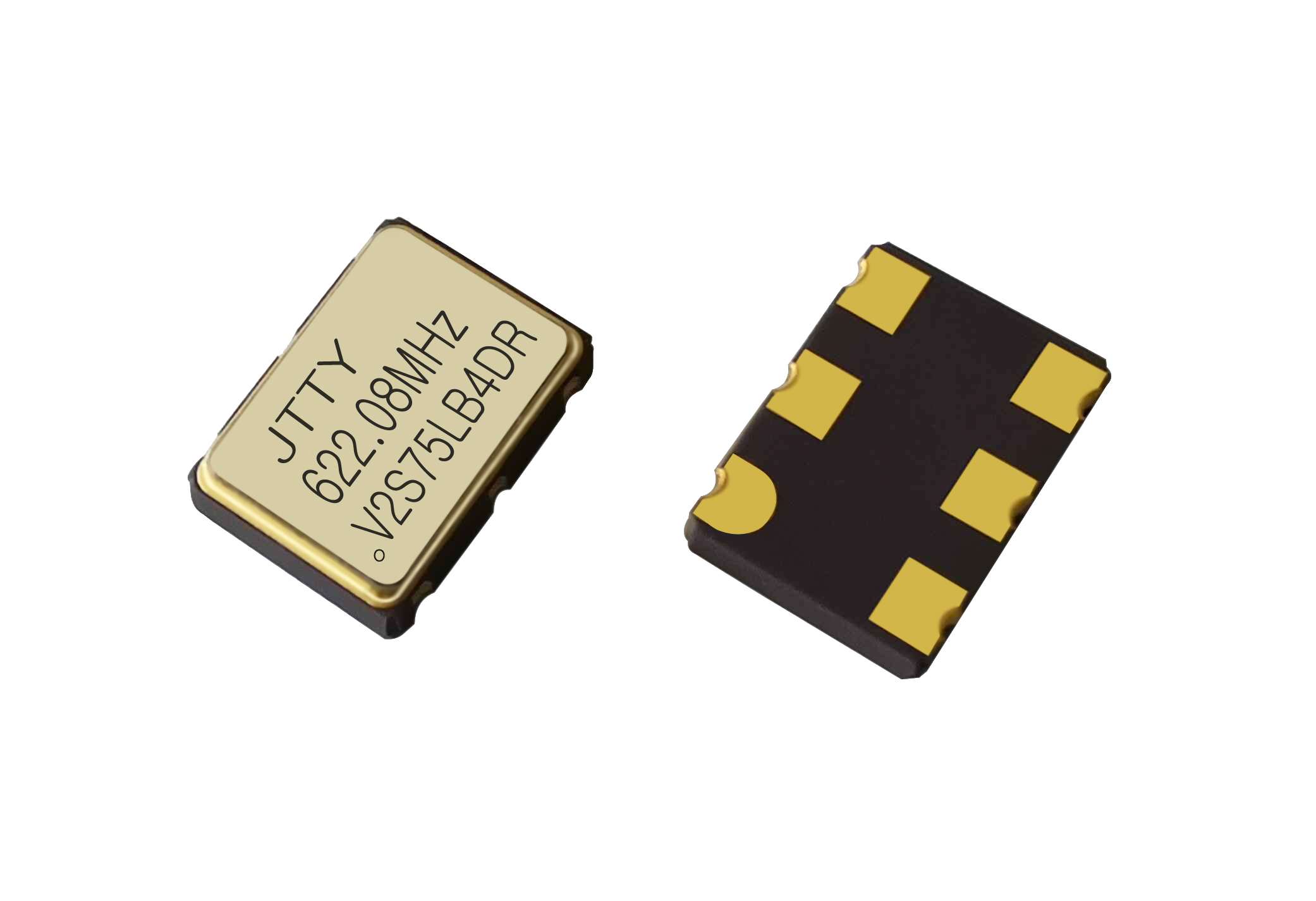

VX32 Package Size:3.2*2.5*1.0;Frequency:10MHz~1500MHz;Supply Voltage:2.5V,3.3V;Frequency stability:±5ppm~±50ppm;Output Leve:LVPECL , LVDS , CML , HCSL;working temperature:-55℃~125℃;

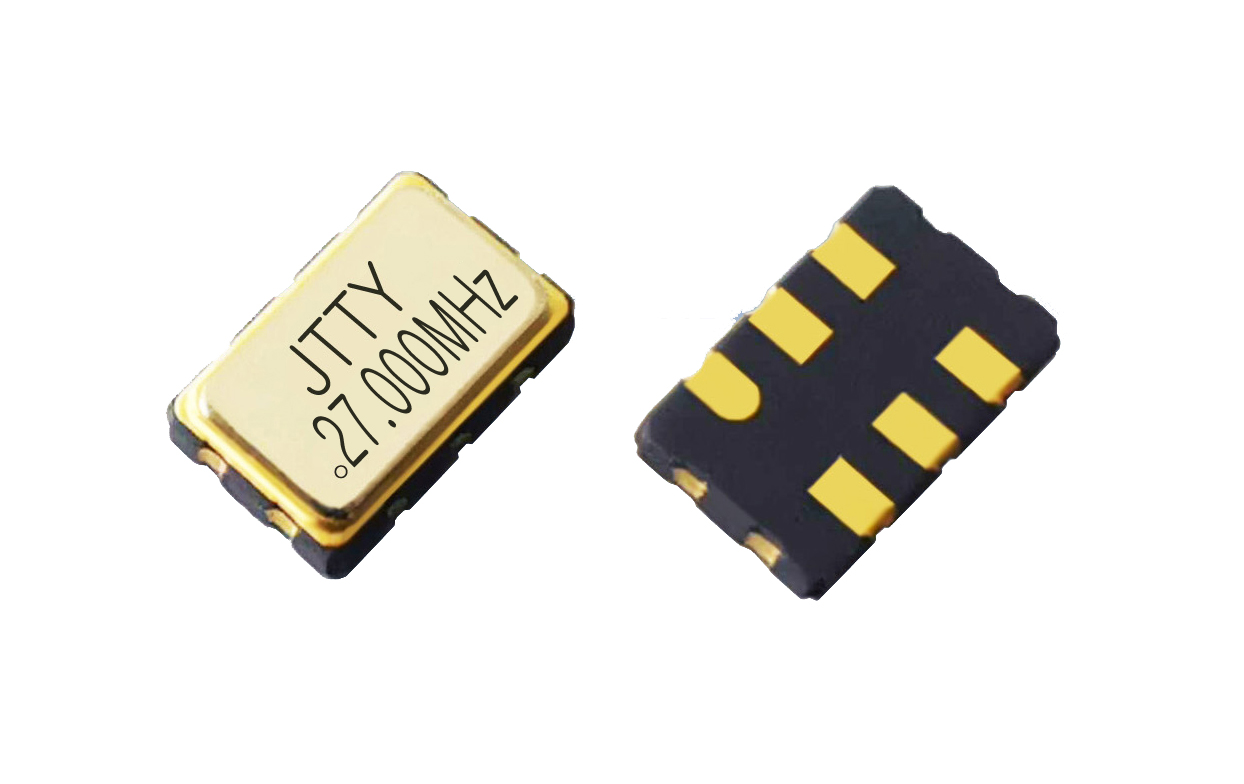

VC53 Package Size:5.0*3.2*1.2;Frequency:1MHz~220MHz;Supply Voltage:1.8V~5V;Frequency stability:±5ppm~±50ppm;Output Leve:CMOS/TTL;working temperature:-55℃~125℃;
VX53 Package Size:5.0*3.2*1.2;Frequency:10MHz~1500MHz;Supply Voltage:2.5V,3.3V;Frequency stability:±5ppm~±50ppm;Output Leve:LVPECL , LVDS , CML , HCSL;working temperature:-55℃~125℃;
VC75 Package Size:7.0*5.0*1.6;Frequency:1MHz~220MHz;Supply Voltage:1.8V~5V;Frequency stability:±5ppm~±50ppm;Output Leve:CMOS/TTL;working temperature:-55℃~125℃;
VX75 Package Size:7.0*5.0*1.6;Frequency:10MHz~1500MHz;Supply Voltage:2.5V,3.3V;Frequency stability:±5ppm~±50ppm;Output Leve:LVPECL , LVDS , CML , HCSL;working temperature:-55℃~125℃;
All of 6 Results
