Crystals

Quartz crystal unit (quartz crystal unit or quartz crystal resonator), often identified as Xtal, is the clock signal generator that drives the CPU. Referred to as crystal or crystal, it is a passive electronic component that uses the inverse piezoelectric effect of quartz crystal (also known as crystal) to produce high-precision clock signal output. The component is mainly composed of a quartz wafer, a pedestal, a casing, a conductive paste, a silver/gold material, and the like. According to the lead condition, it can be divided into two types: in-line (with lead) and surface mount (without lead).
All of 21 Results
Pic. Series Product introduction Datasheet

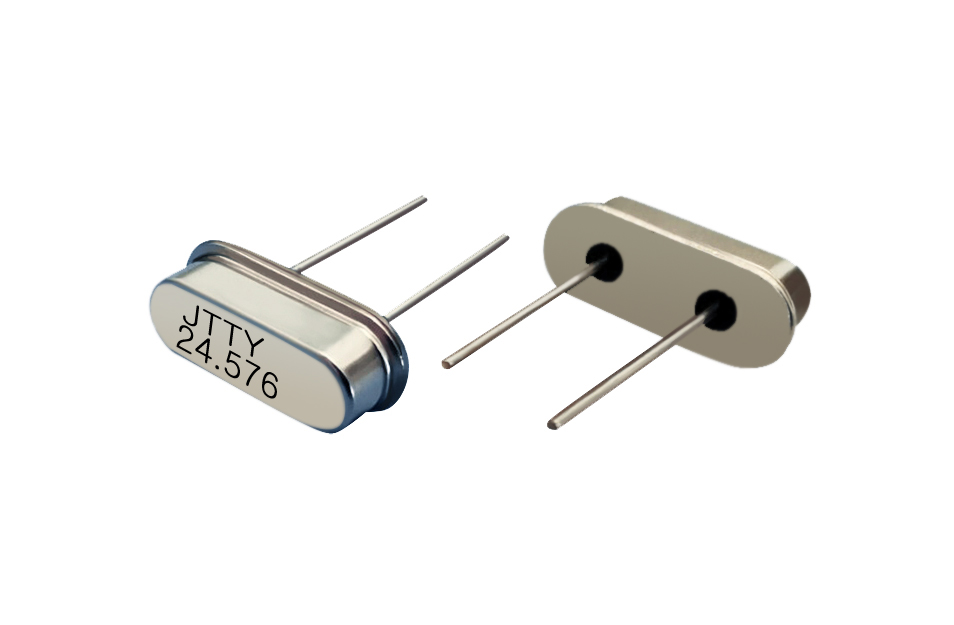

49S
49SA
49SL
Package Size:10.5*3.8*3.5/10.5*3.8*2.5;Frequency:3MHz~150MHz;CL:6~50pF & ∞;Frequency stability:±5PPM~±50PPM;working temperature:-55°C~+125°C;
49M Package Size:10.21*3.75*4.0;Frequency:3MHz~150MHz;CL:6~50pF & ∞;Frequency stability:±5PPM~±50PPM;working temperature:-55°C~+125°C;
CF11 Package Size:1.6*1.2*0.35;Frequency:24MHz~54MHz;CL:6~50pF & ∞;Frequency stability:±5ppm~±50ppm;working temperature:-55~+125;
CF21 Package Size:2.05*1.65*0.45;Frequency:16MHz~60MHz;CL:6~50pF & ∞;Frequency stability:±5ppm~±50ppm;working temperature:-55℃~+125℃;
CF22 Package Size:2.5*2.0*0.5;Frequency:12MHz~125MHz;CL:6~50pF & ∞;Frequency stability:±5ppm~±50ppm;working temperature:-55℃~+125℃;
CF32 Package Size:3.2*2.5*0.7;Frequency:8MHz~200MHz;CL:6~50pF & ∞;Frequency stability:±5ppm~±50ppm;working temperature:-55°C~+125°C;
CFG32 Package Size:3.2*2.5*0.75;Frequency:8MHz~200MHz;CL:6~50pF & ∞;Frequency stability:±5ppm~±50ppm;working temperature:-55℃~+150℃;
CT53 Package Size:5.0*3.2*0.9;Frequency:8MHz~200MHz;CL:6~50pF & ∞;Frequency stability:±5ppm~±50ppm;working temperature:-55°C~+125°C;
CTG53 Package Size:5.0*3.2*1.2;Frequency:8MHz~200MHz;CL:6~50pF & ∞;Frequency stability:±5ppm~±50ppm;working temperature:-55℃~150℃;
CF53 Package Size:5.0*3.2*0.9;Frequency:8MHz~200MHz;CL:6~50pF & ∞;Frequency stability:±5ppm~±50ppm;working temperature:-55°C~+125°C;
All of 21 Results
